¶ Description
 |
 |
 |
 |

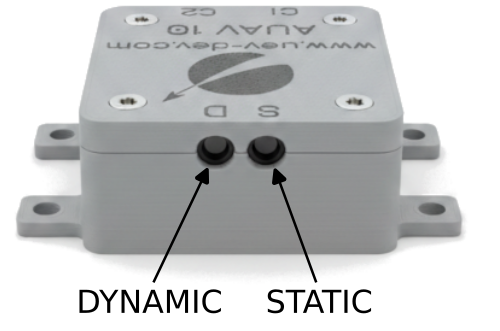

The DroneCAN Airspeed & Baro Sensor is a DroneCAN sensor node for unmanned aerial vehicles (UAVs) that precisely measures differential pressure (airspeed) as well as static pressure (barometric altitude).
¶ Precise Measurement
- Differential pressure for accurate airspeed determination
- Static pressure for reliable altitude and barometric measurements
¶ Maximum Reliability Through Redundancy
The sensor features a redundant DroneCAN connection and can be connected to the autopilot via two independent bus lines simultaneously.
This provides true communication redundancy:
- Parallel connection to two DroneCAN buses
- Continuous communication even in case of cable damage or bus failure
Significantly increased system safety for mission- and safety-critical UAV applications
¶ Engineered & Manufactured in Germany
The DroneCAN Airspeed & Baro Sensor Node is fully developed and manufactured in Germany, representing:
- Highest quality standards
- Reliable industrial manufacturing
Long service life and reproducible performance
¶ Key Benefits at a Glance
- Combined airspeed and barometric sensor in a compact node
- Redundant DroneCAN communication for maximum operational safety
- Seamless integration with common autopilot systems
- Engineered & Made in Germany
This sensor is the ideal choice for professional UAV systems where precise flight data acquisition, redundancy, and reliability are top priorities.
¶ Measuring Range
| Sensor range | m/s | km/h | kt |
| 5 inH₂O | 45,1 | 162,3 | 87,7 |
| 10 inH₂O | 63,8 | 229,6 | 123,9 |
| 30 inH₂O | 110,5 | 397,6 | 214,7 |
| 60 inH₂O | 156,2 | 562,3 | 303,6 |
| 100 inH₂O | 201,7 | 726,0 | 392,0 |

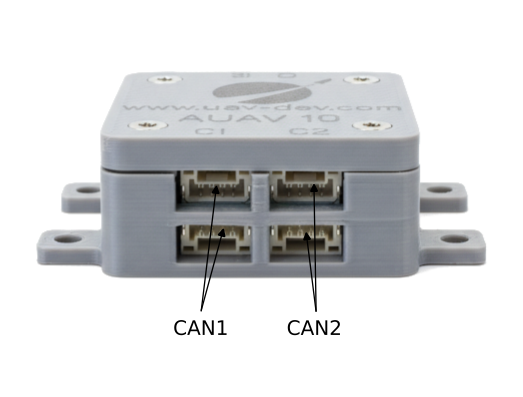

¶ Connector Assignment
 |
 |
¶ CAN1
JST-GH 4 Pin
| Pin | Signal |
| 1 | +5V |
| 2 | CAN1_H |
| 3 | CAN1_L |
| 4 | GND |
¶ CAN2
JST-GH 4 Pin
| Pin | Signal |
| 1 | +5V |
| 2 | CAN2_H |
| 3 | CAN2_L |
| 4 | GND |
¶ Compatibility
| ArduPilot | yes |
| PX4 | yes |
¶ Configuration
¶ ArduPilot
¶ DroneCAN (non-redundant communication)
| Parameter | Value |
| CAN_P1_DRIVER | 1 (First driver) |
| CAN_D1_PROTOCOL | 1 (DroneCAN) |
¶ DroneCAN (redundant communication)
| Parameter | Value |
| CAN_P1_DRIVER | 1 (First driver) |
| CAN_D1_PROTOCOL | 1 (DroneCAN) |
| CAN_P2_DRIVER | 2 (Second driver) |
| CAN_D2_PROTOCOL | 1 (DroneCAN) |
¶ Airspeed
| Parameter | Value |
| ARSPD_USE | 1 (Use) |
| ARSPD_TYPE | 8 (DroneCAN) |
¶ PX4
¶ DroneCAN
| Parameter | Value |
| UAVCAN_ENABLE | 2 (Sensors Automatic Config) |
¶ Airspeed
| Parameter | Value |
| UAVCAN_SUB_ASPD | 1 (Enable) |
| UAVCAN_SUB_DPRES | 1 (Enable) |
¶ Barometer (optional)
| Parameter | Value |
| UAVCAN_SUB_BARO | 1 (Enable) |
¶ GPL Information
This product contains software components from the open-source project ArduPilot (licensed under GPLv3).
Source code and modifications: https://github.com/ArduPilot/ardupilot
License text: https://www.gnu.org/licenses/gpl-3.0.html
The device supports installation of custom firmware.
¶ Dimensions
PCB: 33 mm x 33 mm
With housing: 37 mm (53 mm with mounting tab) x 37 mm x 16 mm
¶ Scope of Delivery
- DroneCAN Airspeed-Sensor housed in a flame-retardant PC 3D-printed enclosure
¶ Ordering Information
Made in Germany DroneCAN Airspeed-Sensor is available in the UAV-DEV GmbH online shop
DroneCAN Airspeed-Sensor is available in the UAV-DEV GmbH online shop
Pitot Tube including hose is available in the UAV-DEV GmbH online shop
¶ Country of Origin
| Development | DE |
| PCB | DE / CN |
| PCB Assembly | DE / CN |
| Configuration & Testing | DE |
| Packaging & Shipping | DE |
